For OLED

FLAT ITO Films

Transparent conductive films with smooth surfaces

Overview

For organic thin film devices, conductive films with a smooth surface are best.
We provide films that can be used even without polishing.

Features & Strengths

Point1 Smooth surfaces

Flat films realized by controlling grain size

Point2 No polishing necessary

Reduces polishing process required for smooth film, improving cost and yield

Applications

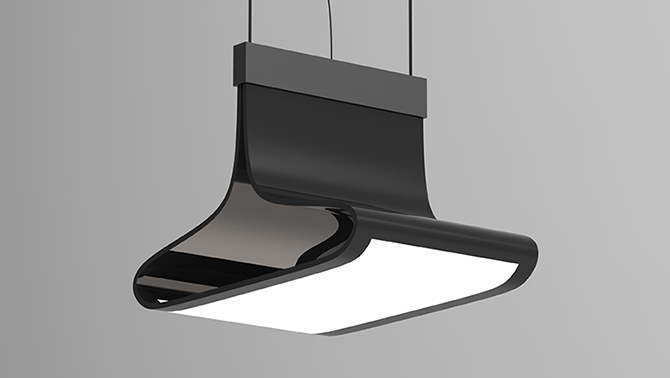

Illumination

Create comfortable spaces with natural colors and gentle light

View more applications

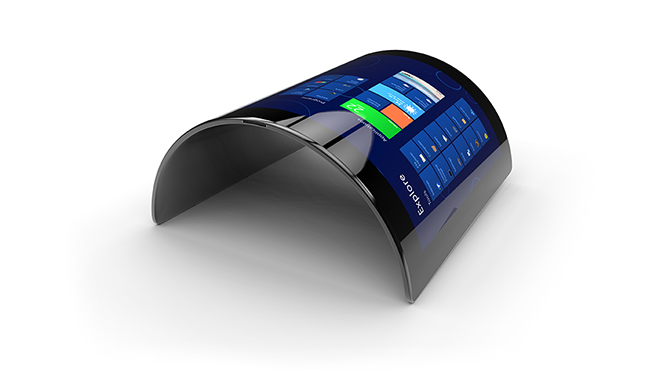

Touch screen displays

FLAT ITO films contribute to the manufacture of organic EL (OLED) touch screen displays. It provides users of devices like smartphones and tablets with comfortable touch controls and beautiful video experiences.

View more applications

Specifications

Superior Patterning and Resistance Value

Flat ITO film has a uniform domain structure, creating smooth patterned edges. In addition, we have achieved low resistance equal to standard ITO films and low membrane stress, meaning low stress on the substrate as well.
In addition, we have achieved flatness equal to polished surfaces and no polishing is necessary after the film is applied, meaning one less process to deal with. This also means freedom from the concern of residue or damage after polishing.

Comparison of ITO film characteristics

General crystallized ITO films Flat ITO films
Resistance values [ Ω / sq ] 13,3 10,1
Film thickness [ nm ] 150 158
Resistance comparison [ µΩ·cm ] 225 159
Transmittance Rate [ % ] 90.5(λ=550 nm) 89.7(λ=550 nm)

Comparison of ITO film surfaces

Materials General crystallized ITO films Flat ITO films
Ra [nm] 3.7 1.2
Rmax [nm] 38.5 14.2

*The above figures are representative values and are not guaranteed.

You can tell how smooth the surface is compared to standard ITO.

Standard ITO Flat ITO films

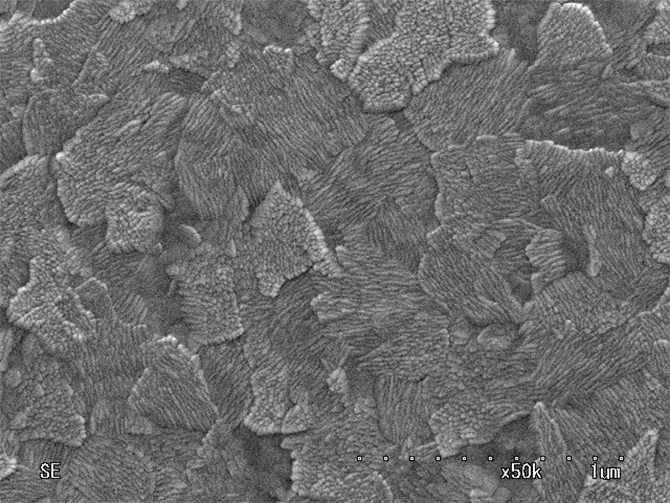

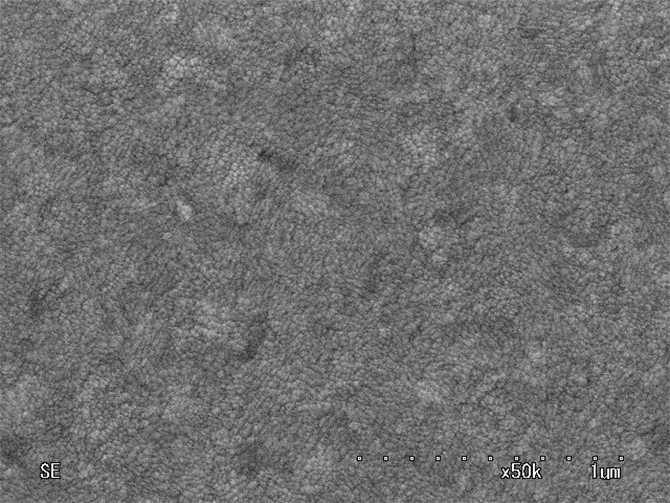

SEM x 50,000x

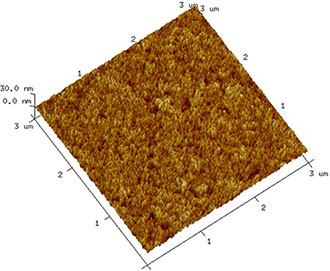

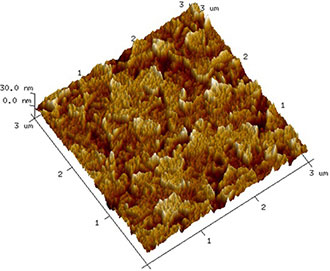

AFM 5μm

Contact us-to-Delivery Process

When outsourcing of thin-film coatings to substrates provided by customers

Below is an example of contact us-to-delivery process when outsourcing of thin-film coatings to substrate materials provided by customers. Whether you need a single item prototype or mass production, trust Geomatec to provide high-quality, high-performance thin-film coatings.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Thin-film manufacturing (procurement, coating and post process)

    We will apply thin films to substrate materials provided by customers and carry out high-quality, stable manufacturing and processing in a class 100 to 1,000 clean room (as defined in Federal Standard 209D).

  • Step6Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step7Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.

When outsourcing of substrate material procurement and post coating process, in addition to thin-film coating

The following is an example of contact us-to-delivery process when outsourcing of substrate material procurement and post coating process, in addition to thin-film coating. Geomatec will control all steps of the process.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Substrate material procurement

    Geomatec will procure glass and film substrates from our trusted supply chain, built over several decades of business.

  • Step6Thin-film coating

    We will coat your products with the high-performance thin films necessary to achieve your desired functions.
    Our class 100 to 1,000 clean room (as defined in Federal Standard 209D) ensures high quality, stable production.

  • Step7Post coating process

    We handle post coating process for thin film, including surface splicing of glass and frame printing.

  • Step8Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step9Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.
