Anti-fingerprint & anti-stain coatings

Water & Oil Repellent Coatings

Overview

Repelling fingerprints and oil makes surfaces easier to clean.

Features & Strengths

Point1 Effects last longer than typical coatings

Point2 Adding water and oil repellent functions while keeping its original optical properties

Point3 Can be applied to glass, resin, metal, and a wide variety of other substrates

Point4 Our large machines are capable of coating over a broad area

Applications

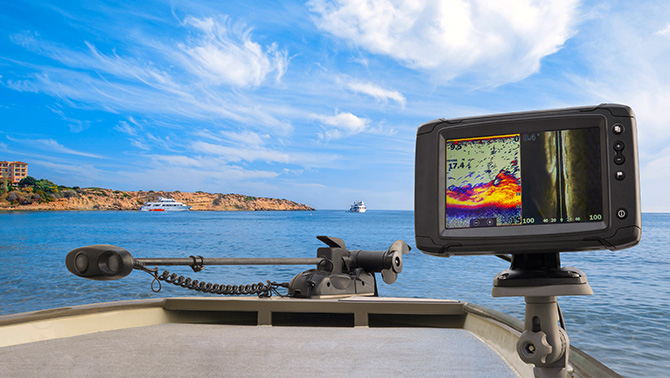

Instruments & Displays aboard marine vessels

Maintaining visibility and durability amid harsh environmental conditions, such as exposure to strong sunlight and seawater

View more applications


Automobile display devices

Reflected prevent glare and make displays easier to see

View more applications


Touch screen displays

Touch screen displays owe their comfortable touch control and beautiful video experiences to the function of high-performance thin films

View more applications

Specifications

Comparison of repellent performance

Contact angle of pure water

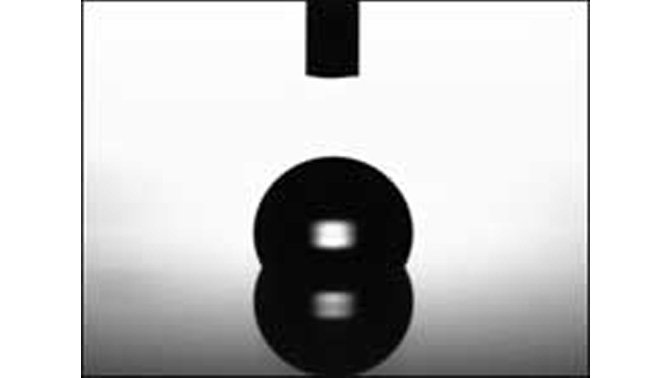

  • Substrates with repellent coating Contact angle: 114.7°

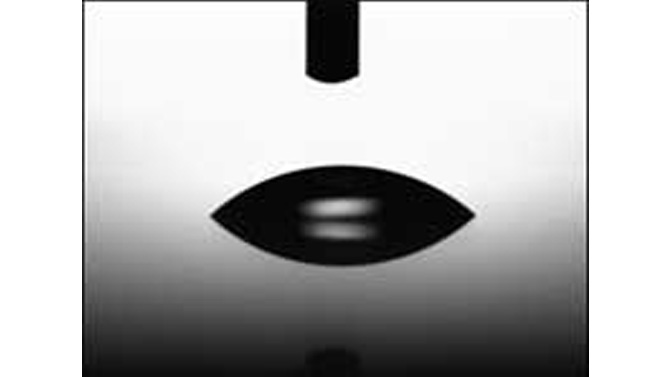

  • Unprocessed substrates Contact angle: 41.7°

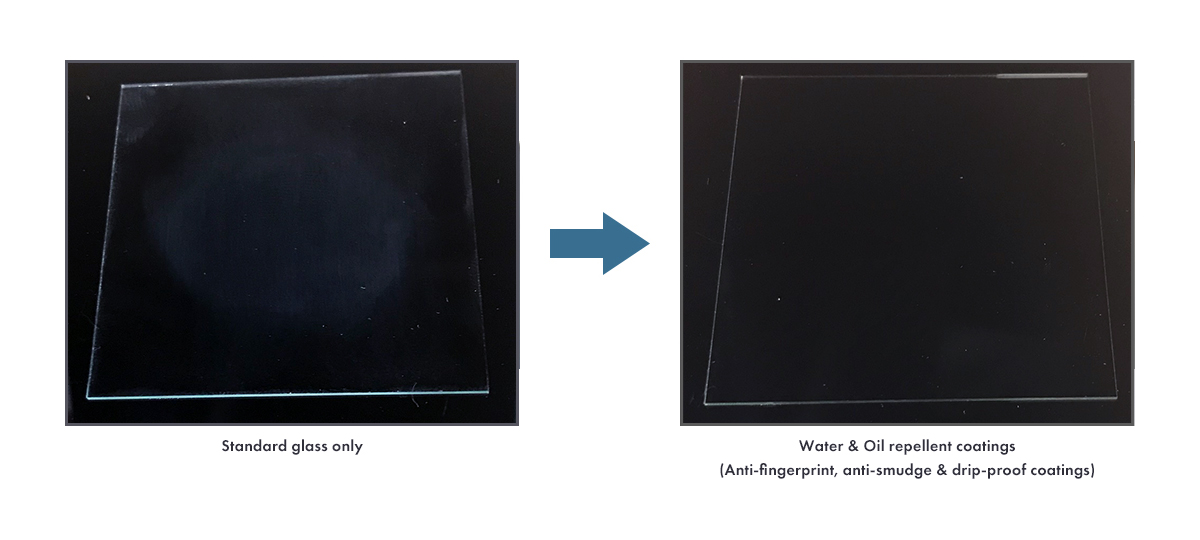

Comparing ease of cleaning fingerprints

Durability test for repellent films (film applied to glass substrates)

Durability test Durability conditions Test results
High temperature test 100℃ x 1,000 hours Contact angle greater than 110°
Low temperature test -40℃ x 1,000 hours Contact angle greater than 110°
High temperature, high humidity test 85℃/85% 1,000 hours Contact angle greater than 110°
Heat cycle test Highest: 105℃
Lowest: -40℃
per hour, 1000 cycles
Contact angle greater than 110°
Abrasion resistance test Steel wool
1 kg/cm² x10,000 times
Contact angle greater than 110°

Contact us-to-Delivery Process

When outsourcing of thin-film coatings to substrates provided by customers

Below is an example of contact us-to-delivery process when outsourcing of thin-film coatings to substrate materials provided by customers. Whether you need a single item prototype or mass production, trust Geomatec to provide high-quality, high-performance thin-film coatings.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Thin-film manufacturing (procurement, coating and post process)

    We will apply thin films to substrate materials provided by customers and carry out high-quality, stable manufacturing and processing in a class 100 to 1,000 clean room (as defined in Federal Standard 209D).

  • Step6Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step7Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.

When outsourcing of substrate material procurement and post coating process, in addition to thin-film coating

The following is an example of contact us-to-delivery process when outsourcing of substrate material procurement and post coating process, in addition to thin-film coating. Geomatec will control all steps of the process.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Substrate material procurement

    Geomatec will procure glass and film substrates from our trusted supply chain, built over several decades of business.

  • Step6Thin-film coating

    We will coat your products with the high-performance thin films necessary to achieve your desired functions.
    Our class 100 to 1,000 clean room (as defined in Federal Standard 209D) ensures high quality, stable production.

  • Step7Post coating process

    We handle post coating process for thin film, including surface splicing of glass and frame printing.

  • Step8Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step9Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.
