Drip-proof & anti-fog coatings

Hydrophilic Coatings

Film that repels water droplets

Overview

Prevent clouding from water droplets and preserve clear visibility.

Features & Strengths

Point1 Superior in weather resistance, such as ultraviolet rays

Point2 Less affected by dust due to anti-static protection

Point3 Can be applied to glass, resin, metal, and a wide variety of other substrates

Applications

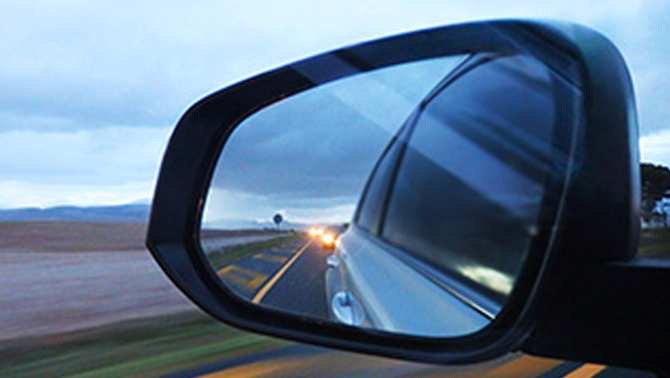

Door mirrors

Preventing glare and condensation to ensure clear rear visibility

View more applications


Onboard cameras & sensors

Superior visibility for safe driving in rain or snow

View more applications

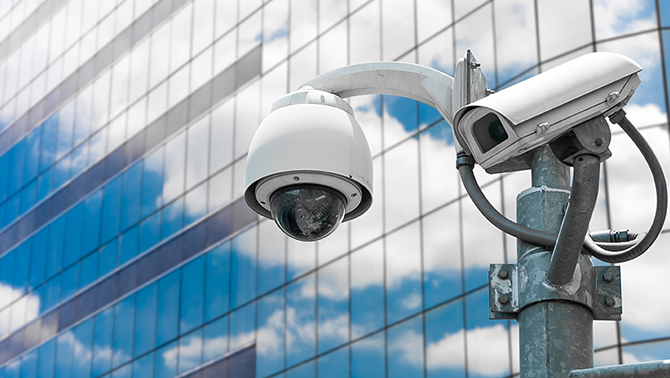

Surveillance & Observation camera lenses

Obtain solid video records with clear visibility, achieved by preventing dew condensation and accumulation of snow

View more applications


Mirrors near water, in locations such as bathrooms or sinks

Making mirrors near water reflect images clearly without clouding

View more applications

Specifications

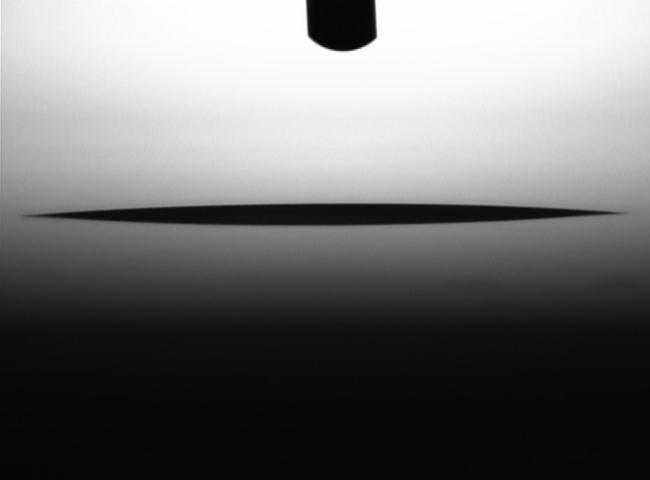

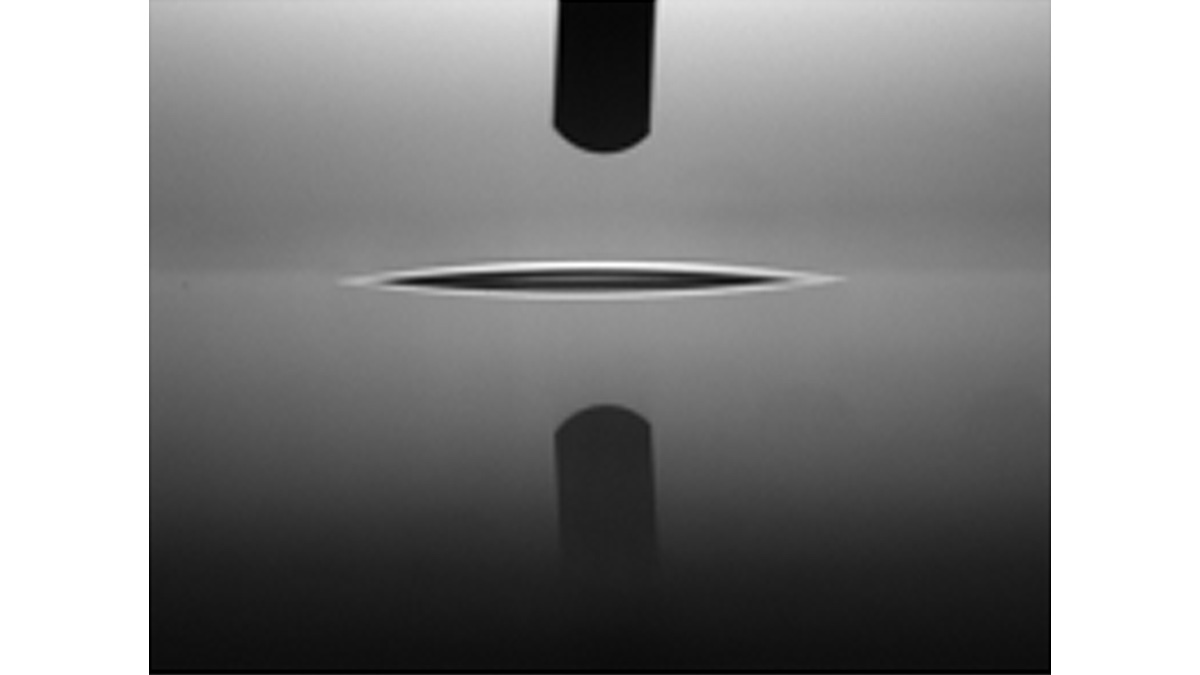

Contact angle of pure water

Contact angle: 10° or under (measured value: 4.0°)

Substrate Material Sizes

Corresponding size A4
*Please feel free to contact us if you require the larger size.

Hydrophilic coating durability test (Film coating implemented on glass substrates)

Durability test Durability conditions Test results
High temperature test 100℃ x 150 hours Contact angle 10° or under
High temperature, high humidity test 60℃ / 90% RH 150 hours Contact angle 10° or under
Heat cycle test Highest: +50℃
Lowest: -20℃
Contact angle 10° or under
Weather resistance test Irradiation wavelength 365 nm
18.5 mJ/cm2x120 hours
Contact angle 10° or under
Carbon arc test UV fade meter※1
240hr
Contact angle 10° or under
Abrasion resistance test Brush rubbing※2
5N weighted x 3000 times
Contact angle 20° or under
Dust test Kanto (Japanese) loam※3 Haze 1% or under

※1Adopted U48 made by Suga Test Instruments Co.,Ltd.

※2Adopted KNT-1233 made by Ikemoto Brush Co.,Ltd.

※3Measured haze by putting in test piece and 100cc dust to 150mm high cylindrical container and invert it up and down three times.

Experiment with household humidifier (defogging effect check)

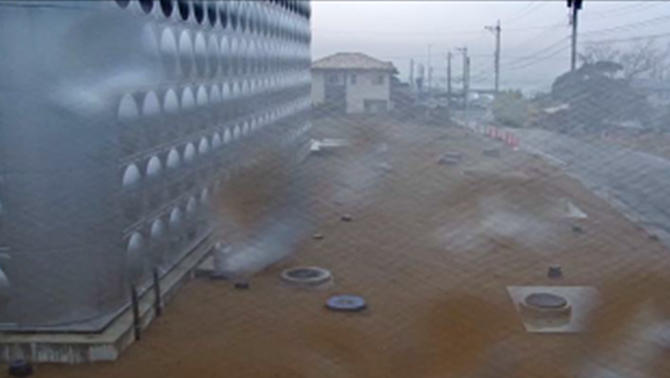

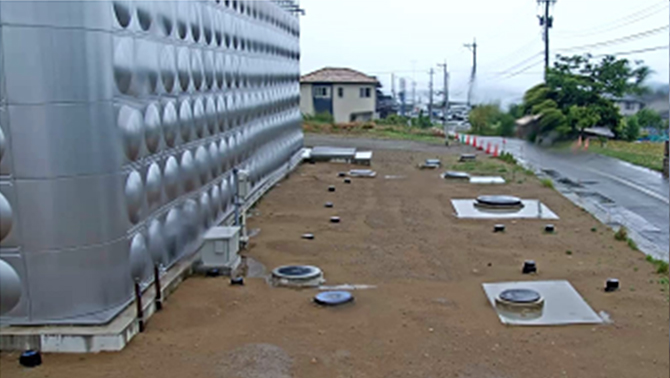

Comparing picture of monitoring camera

  • Unprocessed

  • Hydrophilic coatings

Contact us-to-Delivery Process

When outsourcing of thin-film coatings to substrates provided by customers

Below is an example of contact us-to-delivery process when outsourcing of thin-film coatings to substrate materials provided by customers. Whether you need a single item prototype or mass production, trust Geomatec to provide high-quality, high-performance thin-film coatings.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Thin-film manufacturing (procurement, coating and post process)

    We will apply thin films to substrate materials provided by customers and carry out high-quality, stable manufacturing and processing in a class 100 to 1,000 clean room (as defined in Federal Standard 209D).

  • Step6Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step7Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.

When outsourcing of substrate material procurement and post coating process, in addition to thin-film coating

The following is an example of contact us-to-delivery process when outsourcing of substrate material procurement and post coating process, in addition to thin-film coating. Geomatec will control all steps of the process.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Substrate material procurement

    Geomatec will procure glass and film substrates from our trusted supply chain, built over several decades of business.

  • Step6Thin-film coating

    We will coat your products with the high-performance thin films necessary to achieve your desired functions.
    Our class 100 to 1,000 clean room (as defined in Federal Standard 209D) ensures high quality, stable production.

  • Step7Post coating process

    We handle post coating process for thin film, including surface splicing of glass and frame printing.

  • Step8Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step9Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.

Inquiries & Requests for Materials

Please feel free to contact us for more details.

  • Detailed specifications and data
  • Prices and Quotes
  • Delivery Confirmation
  • Customization
  • Sample and Prototype Production
  • Other
