Preventing malfunction of electric equipment

Electromagnetic Wave Shield Coatings

Overview

Geomatec's electro-magnetic wave shield coatings reduce electromagnetic waves coming from transparent surfaces such as display cover panels or automobile rooftop windows.
Transparent conductive films enhance transparency, and light-shielding coatings suppress glare. It is also thinner than other electro-magnetic wave shields that use common plating processes.

Features & Strengths

Point1 Amazing shield effectiveness while maintaining transparency

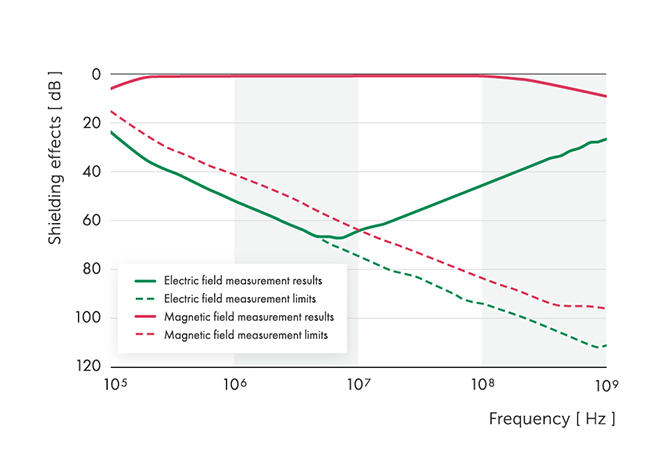

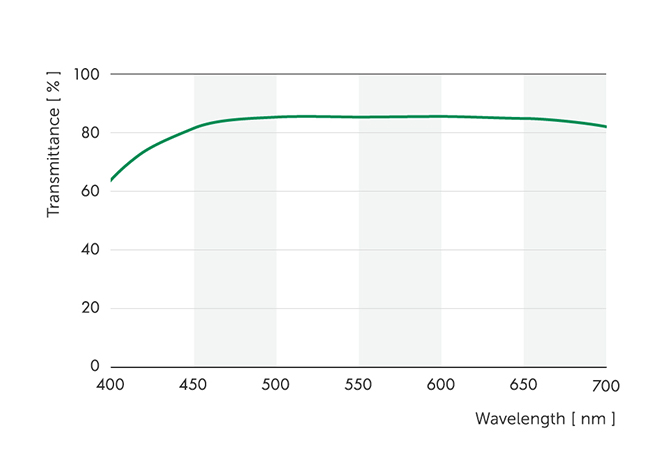

With transparent conductive films, we have achieved 85% transmittance of light at all wavelengths with high shielding 20dB and greater. These films are also effective at repelling heat rays.

Point2 They can be coated to magnetic material as well

Magnetic objects such as Ni or Fe can also be thinly coated. In addition, by applying blackened film coatings over the metallic thin films, it is possible to reduce the glare of metallic luster.

Point3 Can be applied to substrates made from a wide variety of material types

Can be coated to many substrates, including glass, ceramic, resins, and more.

Applications


Cover panels for aircraft instruments & Displays

Preserve visibility of display devices and maintain normal instrument operation to ensure a safe, stress-free flight

View more applications

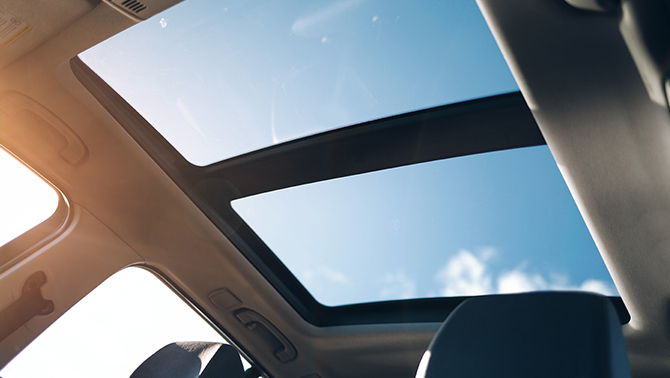

Rooftop windows (sun roofs & moon roofs)

By applying our electro-magnetic wave shields to rooftop windows, drivers can block incoming electromagnetic waves and make it easier to operate their onboard electronic devices. Geomatec also makes it is possible to directly coat resin roof materials such as polypropylene (PP), which is difficult to plate.

View more applications

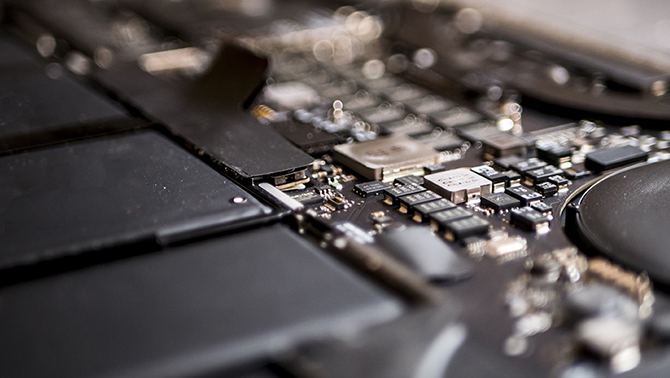

Laptop computers & FA devices

Due to the light weight of laptop computers and portable FA devices, resins are increasingly used in the place of metals not only in casings but also interiors.
By directly coating resins with metallic films, these lightweight materials gain shielding effects.
This has contributed to lighter weight terminals and malfunction prevention.

Specifications

Example specifications

Film thickness 100 nm
Transmittance 85% (Total light transmittance)
Shielding effects 20 dB or greater (100 kHz - 1GHz)
Substrates PET
Substrate thickness 50 µm
Resistance value 10 Ω / sq

Contact us-to-Delivery Process

When outsourcing of thin-film coatings to substrates provided by customers

Below is an example of contact us-to-delivery process when outsourcing of thin-film coatings to substrate materials provided by customers. Whether you need a single item prototype or mass production, trust Geomatec to provide high-quality, high-performance thin-film coatings.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Thin-film manufacturing (procurement, coating and post process)

    We will apply thin films to substrate materials provided by customers and carry out high-quality, stable manufacturing and processing in a class 100 to 1,000 clean room (as defined in Federal Standard 209D).

  • Step6Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step7Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.

When outsourcing of substrate material procurement and post coating process, in addition to thin-film coating

The following is an example of contact us-to-delivery process when outsourcing of substrate material procurement and post coating process, in addition to thin-film coating. Geomatec will control all steps of the process.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Substrate material procurement

    Geomatec will procure glass and film substrates from our trusted supply chain, built over several decades of business.

  • Step6Thin-film coating

    We will coat your products with the high-performance thin films necessary to achieve your desired functions.
    Our class 100 to 1,000 clean room (as defined in Federal Standard 209D) ensures high quality, stable production.

  • Step7Post coating process

    We handle post coating process for thin film, including surface splicing of glass and frame printing.

  • Step8Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step9Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.
