Anti-static protection for in-cell liquid crystals and etc

Inorganic High-Resistance Transparent Conductive Films

Transparent films with a resistance greater than 1kΩ/sq have upturned conventional wisdom. Realized via Geomatec's unique technology that uses no organic material, the films also preserve durability

Overview

As a leading company in the field of transparent conductive films and ITO films, Geomatec has upturned conventional wisdom with transparent conductive films that are not only highly transparent but also have superior durability, thanks to our unique technology that makes no use of organic matter.
Contributing to in-cell liquid crystal touch screen displays for high-performance smart phones and more, our high-performance thin-film technology will continue generating breakthroughs for the entire globe and lead to better products for our customers.

Features & Strengths

Point1 Achieving transparent conductive films with high resistance of 1kΩ/sq without the use of organic materials

Although transparent conductive films have always been known for low resistance, Geomatec has used its knowledge of thin-film material development and world class skill with the sputtering method for film coating to eliminate the use of organic materials and increase resistance further.

Point2 Maintaining superior durability compared to one made with traditional coating methods

Traditional coating methods for transparent conductive films have use organic material, leaving a need for improvement in areas that affect reliability, such as surface hardness and resistance to heat. Geomatec solved this problem with unique technology that employs the sputtering method and uses non-organic material.

Point3 Free control of sheet resistance values

Control of sheet resistance values within the range of 1kΩ/sq - multiple TΩ/sq. Even with high resistance, the films still retain the transparency (transmittance rate) expected of transparent conductive films.

Manufacturing examples

Sheet resistance values Transmittance*
Example 1 800 kΩ/sq 98.1%
Example 2 33 MΩ/sq 98.2%
Example 3 3 GΩ/sq 98.5%

*Transmittance for 550 nm wavelengths measured with glass reference

Applications


In-cell liquid crystal touch panel displays

Using inorganic high-resistance transparent conductive films to manufacture in-cell liquid crystal touch panel displays provides the twin benefits of a slimmer device and greater touch sensitivity.

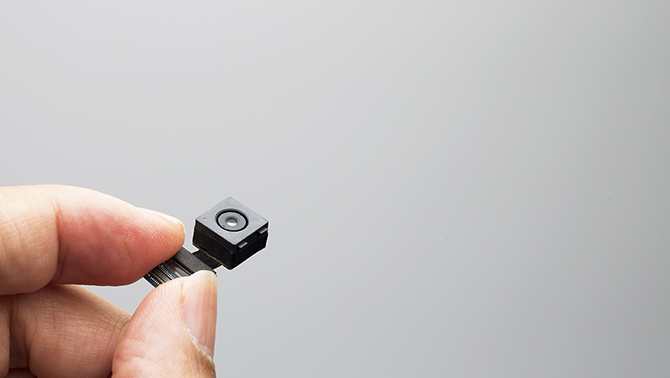

Small cameras, etc. Transparent heaters covering microscopic areas

These heaters can be applied to products, such as small camera lenses, that require heating without loss of transparency. Transparent heaters can even prevent frost and dew condensation over microscopic areas, maintaining clear visibility.

*For example, when heating a 100 mm corner region to above 30℃ with a working voltage of 48V, the resistance of transparent conductors can be held to several hundred Ω/sq, but when heating a microscopic corner region of 5 mm to above 30℃ with a working voltage of 48V, a transparent conductor resistance of several hundred kΩ/sq becomes necessary.

Specifications & Data

Example specifications

Sheet resistance values 200 GΩ/sq
Film thickness 17.9 nm
Transmittance (with wavelengths of 550 nm) 98.4%
Film hardness 9H
Heat resistance (130℃, 60 minutes) 420 GΩ/sq (sheet resistance values after heat resistance experiments)

Contact us-to-Delivery Process

When outsourcing of thin-film coatings to substrates provided by customers

Below is an example of contact us-to-delivery process when outsourcing of thin-film coatings to substrate materials provided by customers. Whether you need a single item prototype or mass production, trust Geomatec to provide high-quality, high-performance thin-film coatings.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Thin-film manufacturing (procurement, coating and post process)

    We will apply thin films to substrate materials provided by customers and carry out high-quality, stable manufacturing and processing in a class 100 to 1,000 clean room (as defined in Federal Standard 209D).

  • Step6Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step7Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.

When outsourcing of substrate material procurement and post coating process, in addition to thin-film coating

The following is an example of contact us-to-delivery process when outsourcing of substrate material procurement and post coating process, in addition to thin-film coating. Geomatec will control all steps of the process.

  • Step1Contact Us

    For detailed questions regarding our products and solutions, order numbers and specifications, delivery times and budget, areas where delivery is possible, or for any other questions about how we can assist with your objectives and ideas, please feel free to contact us.

  • Step2Discovery & Technical meetings

    After inquiring about the details of your request, we will propose the plan that best allows us to meet your objectives. Of course, Geomatec engineers will collaborate with all kinds of manufacturers, as necessary, to support the creation of a product that meets your standards.

  • Step3Estimates

    We will quote based on the specifications defined in the discovery & technical meetings.
    Please rest assured that information on the intended applications of your product, personal information, or other confidential information we receive will be monitored under a strict information security system.

  • Step4Prototypes & Samples

    We will produce prototypes and samples as required.
    In addition, if you are also considering mass production at some point in the future, we can process your prototype on the same machinery that will be used for mass production, ensuring a smooth transition into the mass production stage and identical quality and features as those seen in the prototype.

  • Step5Substrate material procurement

    Geomatec will procure glass and film substrates from our trusted supply chain, built over several decades of business.

  • Step6Thin-film coating

    We will coat your products with the high-performance thin films necessary to achieve your desired functions.
    Our class 100 to 1,000 clean room (as defined in Federal Standard 209D) ensures high quality, stable production.

  • Step7Post coating process

    We handle post coating process for thin film, including surface splicing of glass and frame printing.

  • Step8Quality inspection & Shipping preparation

    We conduct quality inspections of all the products we provide our customers and provide packing according to strict standards.
    Geomatec has acquired certification for its QMS (ISO9001: quality management system) and endeavors to provide safe and stable delivery of high-quality products.

  • Step9Delivery

    We will reliably deliver our products to any location, by any method, and on any day you specify.

    *We offer a flexible range of options other than the above, including in-house consultation on site at customers' factories.
