Thin-Film Pattern Formation & Etching

Processing techniques enabling thin-film varieties and etching patterns

Overview

We will carry out pattern formation processing on all metallic and ITO films for each substrate variety (Polyimide, PET, PEN, etc.), glass, and silicon substrate.
By combining the thin-film coating technology we've accumulated with etching techniques, we can create thin films in a wide variety of forms and etching patterns, including those previously unimaginable.
By making fine adjustments to the conditions of coating and pattern formation, we have coated and created patterns on substrates as thin as 7.5 μm. We can perform not only coating, but also carry out processing with pattern formation only.

Features & Strengths

Point1 A diverse range of film forms and etching patterns

Point2 Consistency of film coating and pattern formation during manufacturing

Point3 We have coated and created patterns on substrates as thin as 7.5 μm

Point4 Processing with pattern formation only also available

Applications


Self detection kit

Self detection kits that are useful for in-house medical and healthcare

View more applications

Specifications

Processing examples

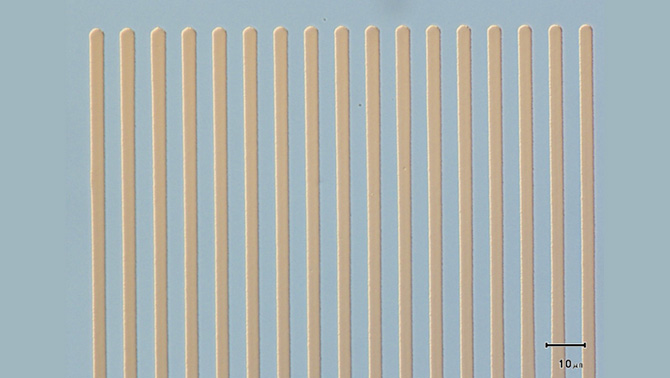

  • PET Film/Cu(L:5μm)

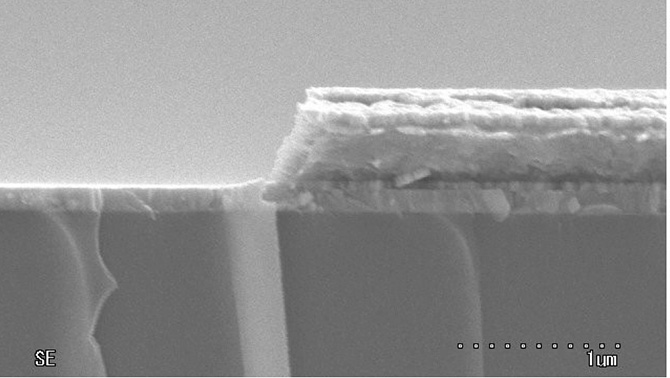

  • Example of pattern processing with aluminum alloy laminated film (Image from observation of SEM cross section)

Pattern formation processing specifications

Substrate materials Glass, silicon wafer, and many varieties of film
Work size *1 10 x 10 mm - 220 x 220 mm, up to 8 inchesφ
Minimum stroke width *2 5μm
Stroke width precision 0.5μm or under (precision at time of exposure)
Alignment precision 1μm or under (requires alignment marks)
Target materials *3 ITO, Al, Al alloys, Ag, Au, APC, Cr, Cu, Cu alloys, Ni, Ni alloys, Mo, Mo alloys, FTO, etc.

*1Please consult with us regarding irregular shapes or other sizes.

*2Please consult with us regarding sizes under 5μm.

*3We possess other thin film materials, as well. Thin film pattern formation is also possible. Please consult with us first.

We can explore specifications other than those above. Please consult with us first.

Contact us-to-Delivery Process

When outsourcing of thin-film coatings to substrates provided by customers

Below is an example of contact us-to-delivery process when outsourcing of thin-film coatings to substrate materials provided by customers. Whether you need a single item prototype or mass production, trust Geomatec to provide high-quality, high-performance thin-film coatings.
