Glass with High-Durability Conductive Films

Highly heat- and chemical-resistant transparent conductive films. Useful for purposes such as experiments.

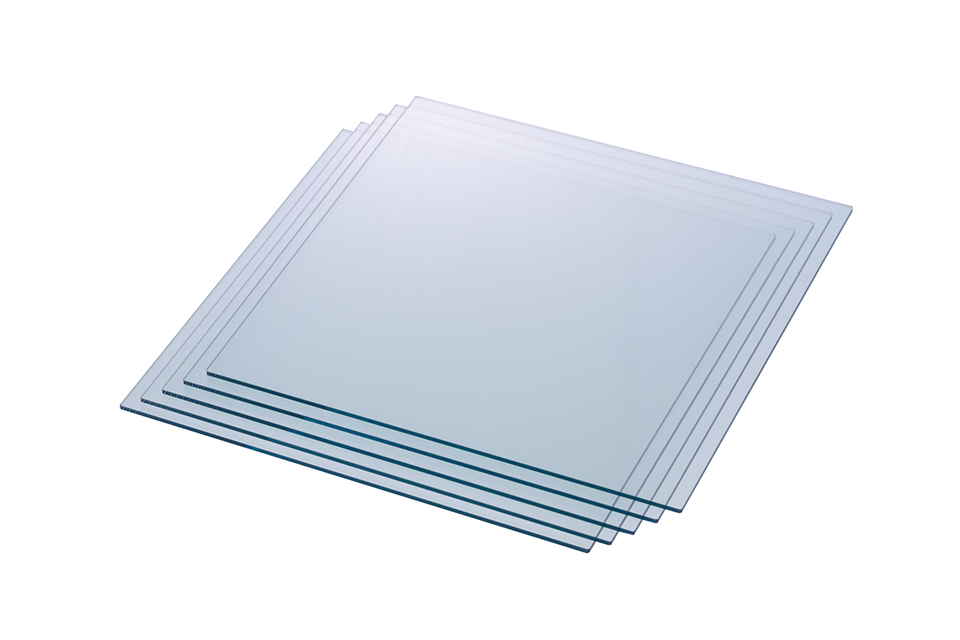

Glass with High Durability Conductive Film

Use case of product

These transparent conductive films have excellent heat and acid resistance, making them ideal for use as transparent electrode film for dye-sensitive solar cells. Three types with different characteristics are available.

Material

  • Soda-lime glass (unpolished glass)
  • Alkali-free glass

Note

  • Heat resistance at 500℃ is guaranteed for one hour.
  • Heating the glass to a temperature higher than 500℃ or for over one hour may cause significant changes in the resistance level.
  • Handle this product with care to avoid injury, as the edges of the substrate may be sharp.

Specifications and Price

*Click here for details on how to make an order, shipment date and payment method.
*Prices do not include delivery fees. Click here for shipping fees.

Scrollable
Product code Size
[mm]
Glass materials Initial resistance
[Ω/sq]
Heat resistance rate of change
[times]
Before heating transmittance
[%]
After heating transmittance
[%]
Price
(5 sheets in 1 set)
Quantity
(subtotal)
[JPY]
1051 100 × 100 × 1.1t Soda-lime glass ≦5 ≦1.1 81≦ 84≦ ¥26,400
0)
1052 ≦10 84≦ 86≦
0)
1053 ≦15
0)
1054 100 × 100 × 0.7t Alkali-free glass ≦5 ≦1.1 81≦ 84≦ ¥26,400
0)
1055 ≦10 84≦ 86≦
0)
1056 ≦15
0)
Total: ¥0

Fill out the form below after selecting the quantity.

  • *Heat resistance (heating) data is for one hour at 500℃ in air.
  • *Transmittance is the maximum wavelength.
