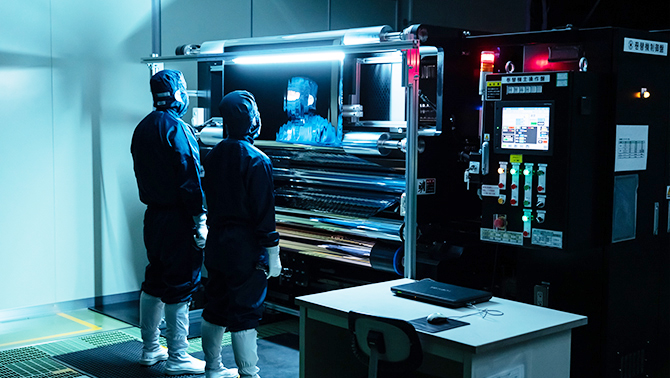

Roll-to-roll film formation

Point1 Our extensive experience and track record with a wide range of deposition materials means that no matter what your needs are, you’re in good hands.

Geomatec has ready access to a rich inventory of 200 varieties of coating materials, including metals, metallic oxides, and semi-conductors. In addition, our know how built over long years of experience enables us to both use multiple varieties of materials and create structures that use multiple layers to achieve necessary features. Working hand in hand with materials manufacturers, we develop new resources to meet customers' diverse needs.

Materials	Width
	700mm	1300mm
Nickel（Ni）		-
Copper（Cu）
Silver（Ag）		-
ITO
Platinum（Pt）		-
Gold（Au）		-

Click the link below for details on our full range of deposition materials.

Available Deposition Materials

Point2 We produce high-performance transparent conductive film and ITO film through our world-leading spattering method.

• We propose the most suitable balance of transparency, electric resistance, flatness, durability, and flexibility to meet our customers' goals.
• We also offer functional thin film design consulting service to determine the specification that matches intended use of your developed products (additional charge applies). Please feel free to consult us.

Characteristics of each transparent conductive film (reference values)

*1PET films

*2Total light transmittance including film transmittance

Our ITO & Transparent Conductive Films

Point3 Extensive deposition experience in ultrathin film (from 4µm), from small area for prototypes to large area for mass production

• We have deposition equipment in various sizes; 1,300mm wide machine suited to mass production and large areas and 700mm wide machines ideal for prototypes and small areas, to meet diverse needs of our customers.
• With our cutting-edge machines and technology, we handle ultra-thin films as thin as 4 µm. We can accommodate long lengths up to 7,000 m when the film thickness is 50 µm.

Substrate Types

*1These are a few examples. Please feel free to ask us about other materials.

*2CPI is a trademark of Kolon Industries, Inc.

Point4 Post-formation processes such as slit processing, laminating, and annealing

Substrate Material Sizes

At maximum, we cover the sizes below. Maximum sizes vary based on the shape and coating content, while delivery timing varies based on the state of the machines used.
Please consult with us if you have any questions.

*1These are a few examples. Please feel free to ask us about other materials.

*2CPI is a trademark of Kolon Industries, Inc.

Available Deposition Materials

Materials	Roll width
	700mm	1300mm
Carbon (C)		-
Aluminum (Al)		-
Silicon (Si)
SiO2
Titanium (Ti)		-
Chrome (Cr)		-
Iron (Fe)		-
Nickel (Ni)		-
Nickel Alloys*
Copper (Cu)
Copper Alloys*
GZO
Nb2O5
Molybdenum (Mo)		-
Molybdenum Alloys*		-
Ruthenium (Ru)		-
Silver (Ag)		-
Silver Alloys*
ITO
Tungsten (W)		-
Platinum (Pt)		-
Gold (Au)		-

*Alloys are available on request. Please feel free to contact us.

Roll-to-roll is just one of the film formation methods we offer. With extensive knowledge of a wide range of materials, we can provide the material and formation method you need to take your products to the next level. We have over 100 production machines to handle a wide range of thin films. Tell us what you need, and we’ll do the rest.

Thin-Film Targets & Substrates

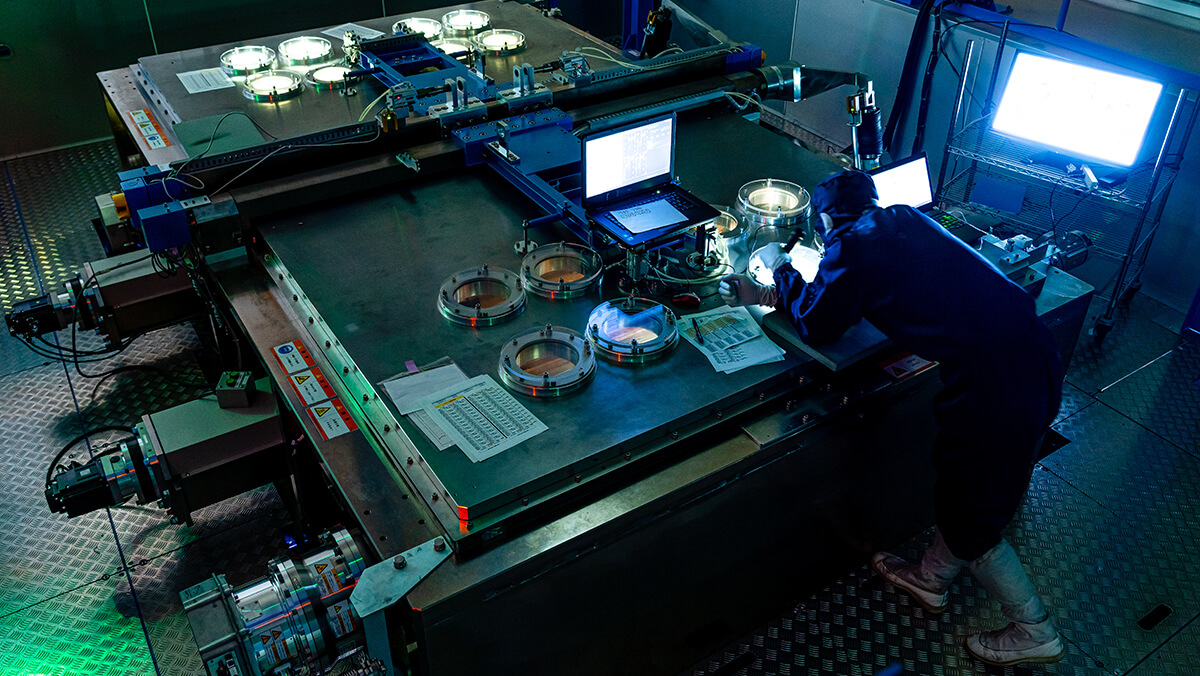

A Wide Variety of Coating Equipment

Available Processing

These are a few examples. Please feel free to ask us about other processes.
